Recommend

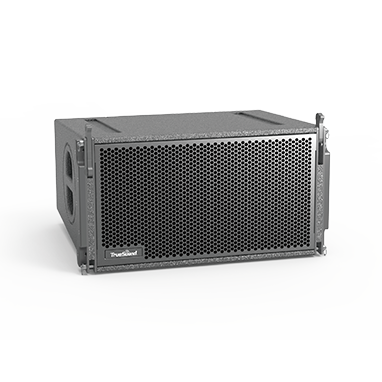

- OD10/10寸兩分頻線陣列音箱
-
OD10/10寸兩分頻線陣列音箱
二分音全頻同軸線性陣列揚聲；
●B&C定制3寸釹鐵錋高音；
●18SOUND定制10寸低音單元；
頻率響應 ：(±3dB) 80 Hz ~ 18 KHz (±3 dB )
(-10dB) 60 Hz ~ 20 KHz (-10dB )
標稱指向性：（-6dB） 80゜ × 8゜
靈敏度(@1w/1m)： HI:112dB, LOW:100dB
功率 ：高頻 80W，低頻 350W
阻抗 ：高頻 16Ω，低頻 16Ω
最大聲壓級： 高頻 131 dB SPL，137dB SPL peak，低頻 125 dB SPL，131dB SPL peak
單元規格： 高音單元 1×3〞釹磁壓縮驅動器(75mm 音圈)，低音單元 1×10〞 (65mm 音圈 釹磁單元)
箱體尺寸：（高X寬X深） 330×630×578(mm)
凈重： 32kg
吊掛： 3點式吊掛，0°至 8°可調
輸入座： NL4MP插座*2
接線方式 ： 低頻1+1-，高頻2+2-，
箱體板材 ： 15mm,18mm多層樺木夾板
箱體表面噴涂 ：表面噴涂聚脲
面網 ：鋼網內覆透聲防塵網棉
